Description
Product details

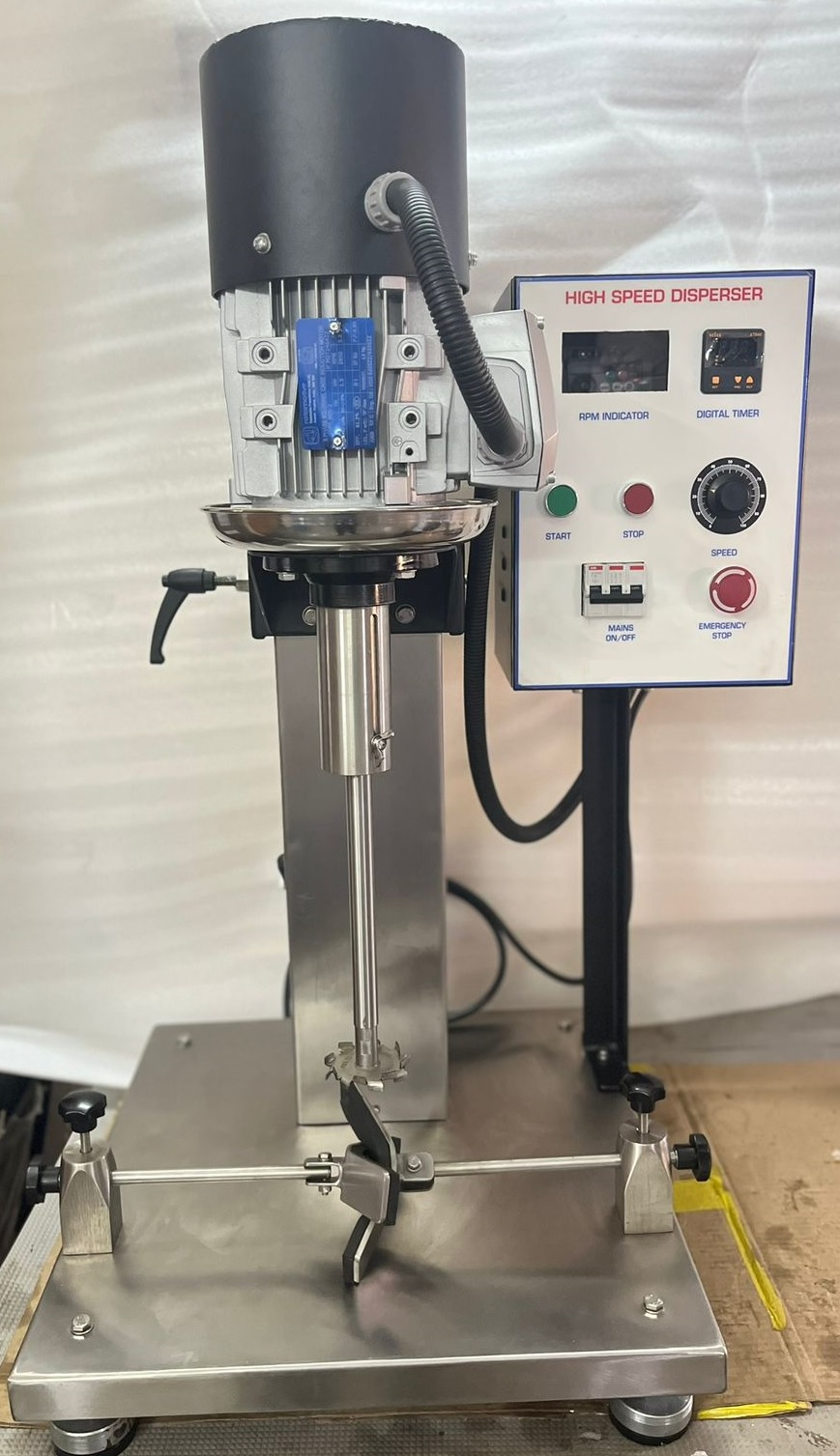

High Speed Disperser – Table Top Model The High Speed Disperser is a compact, table-top mixing solution designed for efficient dispersion of powders into liquids and for dissolving soluble solids. It rapidly breaks apart agglomerates and wets out particles, making it ideal for laboratory-scale mixing and dispersion tasks. Key Features: Table Top Model: Compact and space-saving design suitable for laboratory environments. Motor: Equipped with a Three Phase, Forced Cooled Induction Motor ensuring consistent performance and durability during extended use. Control System: Integrated Variable Frequency Drive (VFD) for adjustable speed control and a Digital Timer Controller for precision and repeatability. Stirrer: Supplied with one (1) 50 mm SS304 Cowl-Type Stirrer for optimal mixing and dispersing action. Tip Speed: Achieves a tip speed in the range of 12 to 18 meters per second, suitable for effective dispersion and grinding. Capacity: Designed for handling 2 to 4 liters of dispersion volume using suitable grinding media. Features- ➢ RPM : 0000 to 4850 Step less variation by VFD. Digital Display of RPM on VFD Panel ➢ Clamping : Manual in “V” Shaped Clamping ➢ Vertical Traverse : Manual Operation eased by counterweight Mechanism & LM slide ➢ Main Supply : 415/430 VAC and 50/60 Hz ➢ Digital Timer : 99 mins 59 secs with memory backup function Note: A sturdy laboratory platform or table is to be arranged by the user for stable operation of the disperser.
