Spear Exim Pvt. Ltd. is a leading manufacturer and exporter of Flame Proof Laboratory Ovens supplying customers across Asia, Europe, the Middle East, Africa, North America, South America, and Oceania."

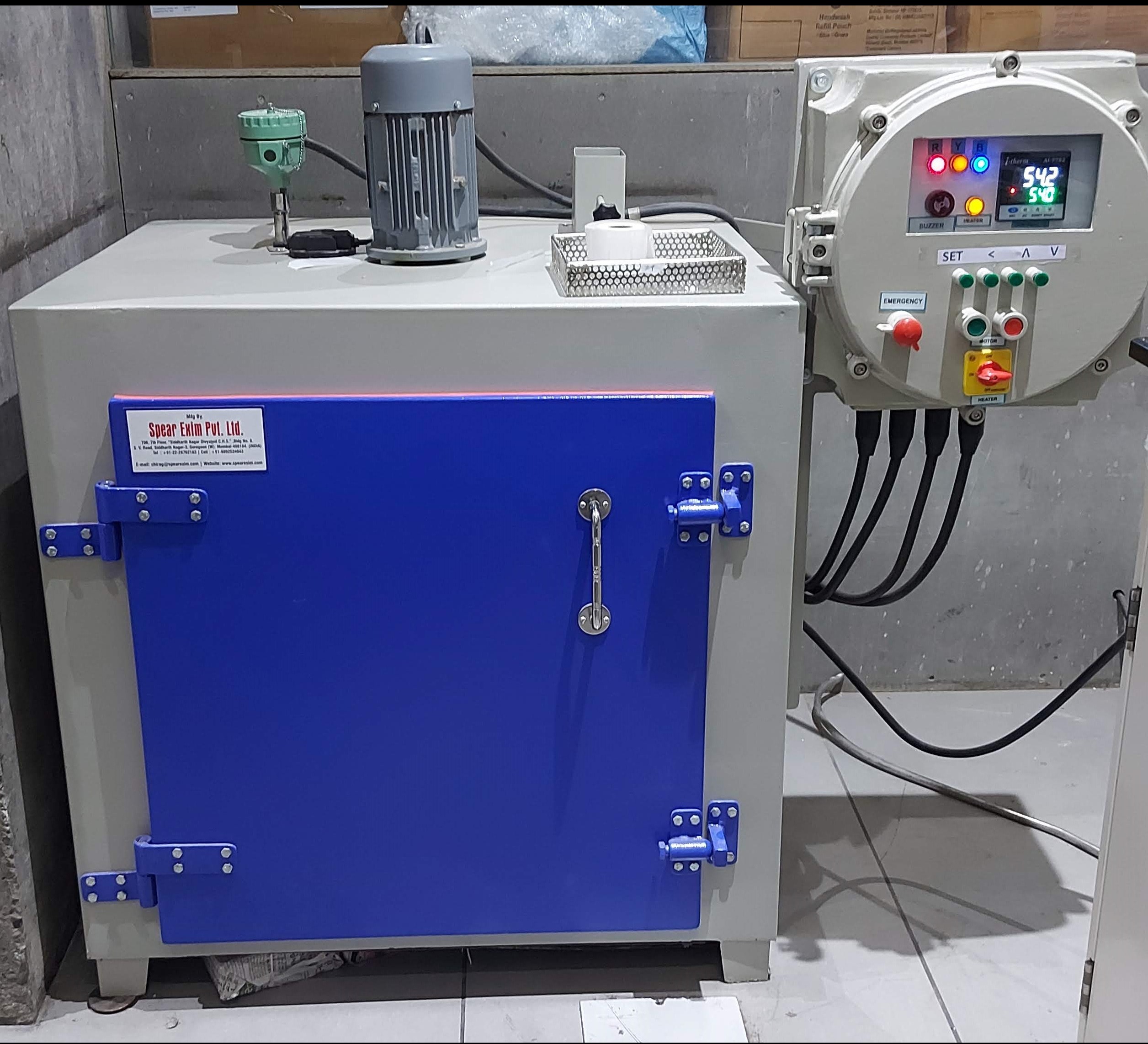

The Flame Proof Laboratory Oven is specially designed for safe drying, heating, curing, baking, ageing, and testing of materials in hazardous areas where flammable vapours or gases may be present. The oven is manufactured with a robust double-walled insulated construction and is fitted with flame proof electrical components to ensure maximum safety, reliability, and temperature uniformity.
Suitable for petroleum, oil & gas, paint, chemical, pharmaceutical, defence, and research laboratories.
Key Features
- Flame Proof construction suitable for hazardous locations.
- Heavy-duty double-wall insulated cabinet.
- Inner chamber made of Stainless Steel 304 or Stainless Steel 316 (optional).
- Exterior powder-coated MS or SS construction.
- High-density mineral wool insulation for minimum heat loss.
- Digital PID Temperature Controller with high accuracy.
- PT-100 Temperature Sensor.
- Forced air circulation for excellent temperature uniformity (optional).
- Heavy-duty heating elements.
- Safety thermostat for over-temperature protection.
- Flame Proof Control Panel with certified electrical components.
- Adjustable stainless steel wire mesh trays.
- Silicone gasket for minimum heat loss.
- Available in various capacities and custom-built sizes.
Technical Specifications
- Temperature Range: Ambient +10°C to 250°C (Higher temperatures available on request)
- Temperature Accuracy: ±1°C
- Temperature Uniformity: ±2°C
- Power Supply: 230V AC Single Phase or 415V AC Three Phase, 50 Hz
- Controller: Digital PID Microprocessor Controller
- Sensor: PT-100 RTD
- Safety: Independent Over Temperature Cut-off
- Construction: Double Wall, Fully Insulated
- Insulation: Mineral Wool
- Finish: Powder Coated / Stainless Steel
Applications
- Petroleum Testing Laboratories
- Oil & Gas Industry
- Chemical Industries
- Paint Industries
- Pharmaceutical Laboratories
- Defence Laboratories
- Research Institutes
- Universities
- Quality Control Laboratories
- Industrial R&D Centres
Optional Accessories
- Programmable Temperature Controller
- Data Logger
- USB/Ethernet Communication
- Recorder
- Additional Trays
- Observation Window
- Internal Illumination
- Castor Wheels
- Custom Chamber Sizes
