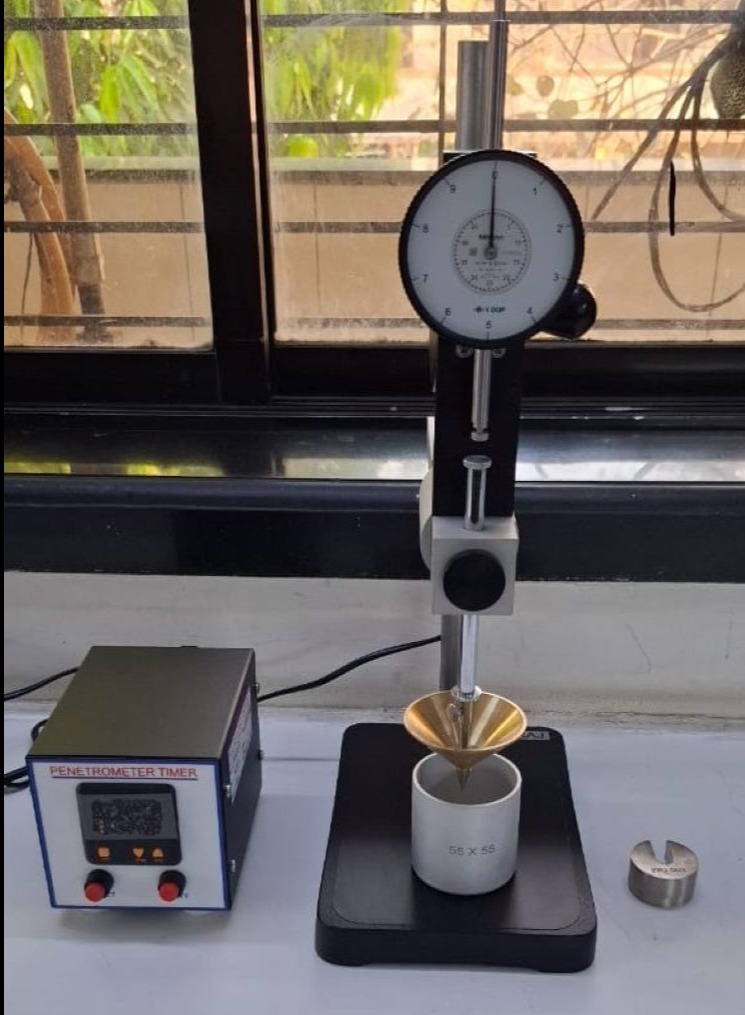

The Penetrometer Apparatus is a precision laboratory instrument used to measure the consistency of lubricating greases and other semi-solid materials by determining penetration depth in DOP (Division of Penetrometer).
The test is conducted by allowing a standard cone or plunger to penetrate the sample under its own gravitational force for a specified time. The depth of penetration is directly indicated on a calibrated dial, providing accurate and repeatable results.
This penetrometer is widely used for testing lubricating greases, waxes, stiff paints, distempers, and soils, and is suitable for quality control laboratories, research institutes, and production units.
The instrument complies with major international and national test standards, ensuring global acceptance of test results.
Standards Complied
-
ASTM D217 – Cone Penetration of Lubricating Grease
-
ASTM D937 – Cone Penetration of Petrolatum
-
ISO 2137 – Petroleum Products – Lubricating Grease
-
IP 50
-
IS 1448 (P:60)
Key Features & Benefits
-
Accurate measurement of grease consistency in DOP
-
Dial range from 0 to 400 DOP (1 mm = 1 DOP)
-
Optional digital timer for controlled penetration time
-
Supplied with standard cone and calibrated weights
-
Suitable for routine QC and R&D applications
-
Rugged construction for long service life
Technical Specifications
-
Dial Range: 0 – 400 DOP
-
Timer (Digital Model): 1 to 9 seconds
-
Cup Size:
-
Standard: 55 mm × 55 mm
-
Optional: 100 mm × 100 mm
-
-
Weights: 50 g & 100 g
-
Cone Weight: 102 g
Package Contents
-
Penetrometer assembly
-
Standard sample cup
-
Cone assembly
-
Calibrated weights
-
Dial gauge
-
Calibration certificate
-
Operation manual
-
Standard spares
