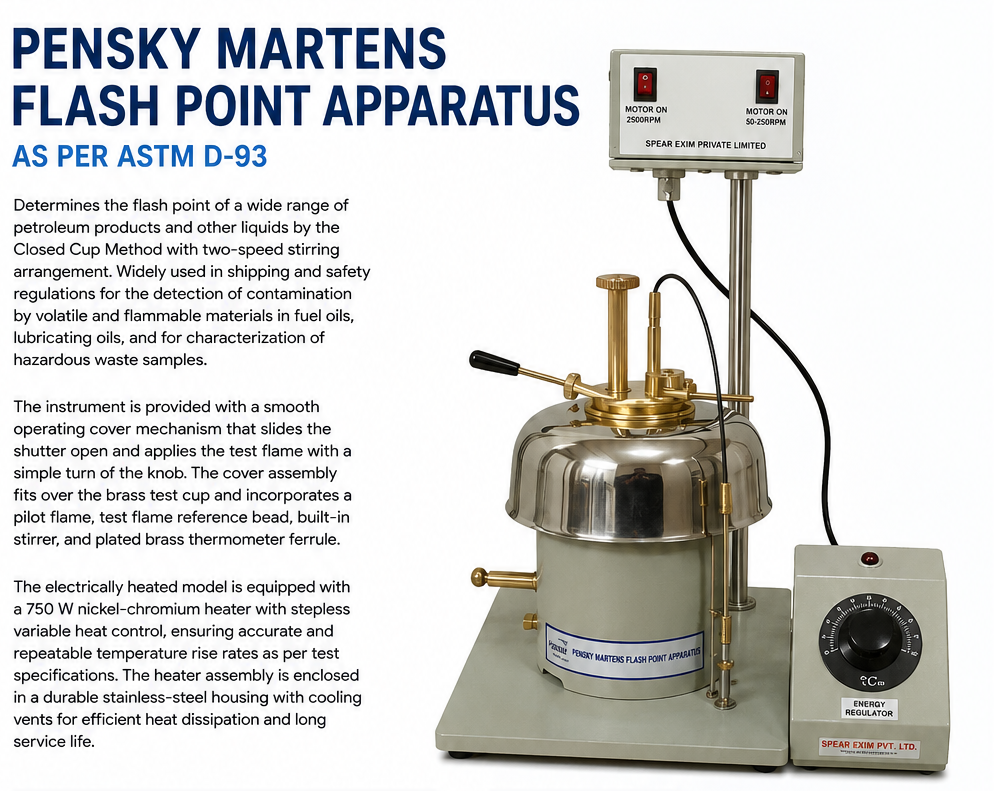

Pensky Martens Flash Point Apparatus (ASTM D93)
Accurate Flash Point Determination for Petroleum and Industrial Liquids
The Pensky Martens Flash Point Apparatus manufactured by Spear Exim Pvt. Ltd. is designed for determining the flash point of petroleum products and other liquids using the Closed Cup Method as per ASTM D93. The instrument is widely used in petroleum laboratories, lubricant manufacturing facilities, refineries, research institutions, and quality control laboratories.
This apparatus helps evaluate the flammability characteristics of fuel oils, lubricating oils, petroleum products, and hazardous waste samples, making it an essential instrument for safety, quality assurance, and regulatory compliance.
Key Features
- Conforms to ASTM D93 test method.
- Closed cup design for accurate flash point determination.
- Electrically heated air bath with energy regulator temperature control.
- Smooth operating cover mechanism with shutter and flame exposure device.
- Built-in two-speed stirring arrangement.
- Gas-operated test flame assembly.
- Durable stainless steel and corrosion-resistant construction.
- Uniform and controlled heating rate for repeatable test results.
- Easy operation and maintenance.
- Suitable for routine laboratory and industrial testing applications.
Construction & Technical Specifications
Construction
- Robust CI body with Stainless Steel 304 top cover.
- Heavy-duty laboratory-grade construction for long service life.
Heating System
- Electrically heated air bath.
- 750 W Nickel-Chromium heater element.
- Efficient heat dissipation system with stainless steel enclosure.
Temperature Control
- Single-point temperature controller.
- Heating rate adjustable between 4°C to 8°C per minute.
Stirring Arrangement
- Gear motor-driven stirrer operating at 115 RPM for ASTM Procedure A.
Flame System
- Integrated gas regulator and test flame arrangement.
- Pilot flame and flame valve assembly provided.
Thermometers
- ASTM 9C Thermometer: -5°C to 110°C.
- ASTM 10C Thermometer: 90°C to 370°C.
Power Supply
- 230 V AC ±10%, Single Phase, 50 Hz.
Applications
The Pensky Martens Flash Point Apparatus is widely used for testing:
- Fuel Oils
- Lubricating Oils
- Petroleum Products
- Solvents and Industrial Liquids
- Hazardous Waste Samples
- Flammable Liquid Safety Assessment
- Shipping and Transportation Safety Compliance
Why Choose Spear Exim?
With over two decades of experience in manufacturing petroleum and lubricant testing equipment, Spear Exim Pvt. Ltd. delivers reliable, durable, and standards-compliant laboratory instruments trusted by customers worldwide.
Benefits
✔ ASTM D93 Compliant Design
✔ Accurate & Repeatable Results
✔ Rugged Industrial Construction
✔ Easy Operation & Maintenance
✔ Suitable for Research, QC & Production Laboratories
✔ Manufactured in India with Global Quality Standards
