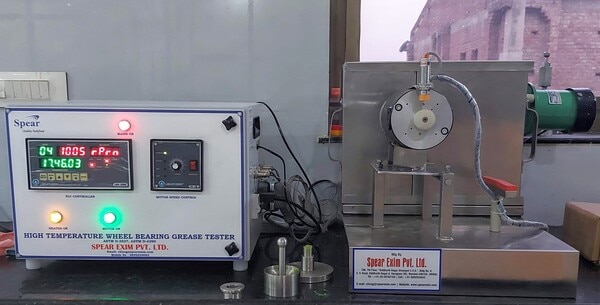

As per ASTM D3527 ,D4290, D4950. The equipment is used for testing of grease for evaluating its life performance by testing at high-temperature. The equipment consists of a modified front wheel hub-spindle-bearings assembly housed in a constant temperature oven and coupled to a ¼ Hp variable-speed drive motor. It Control the test functions automatically and provides continuous digital display of motor torque, rpm, chamber temperature, spindle temperature, time cycle and elapsed time. Test parameters outside of ASTM specifications can be selected by the operator for in-house testing. Automatically terminates test and displays elapsed on-cycle hours when grease deterioration causes drive motor torque to increase to the calibrated end point. A built-in thirty second time delay circuit prevents erroneous test terminations due to momentary surges in motor torque at the beginning of the on-cycle. Insulated constant temperature oven is equipped with a 1200W heater and balanced 1/20 hp circulation fan for efficient heat distribution. Sliding access doors and a movable platform that swings the drive motor out of the way provide easy access to the spindle assembly. Modified steel spindle and hub assembly conforms to all critical 1971 Chevy II dimensions and is fitted with thermocouple, bearing thrust loading device and anodized aluminum grease collector. All controls and monitors are housed in a separate cabinet. Digital controls and displays: Timer : on/off cycle and real time Motor rpm : 0-1725 rpm Motor Torque: current draw Elapsed Time: 9999.9 hr. Maximum Temperature: 177°C Electrical Requirements 220-240V 50Hz, Single Phase, 7A Included Accessories Thermocouples (2) Thermometer holder Bearings (1 set) Grease Packer Assembly Bearing Installation/Removal Tools: Bearing installer, small and large bearing cup removers, bearing cup installer, bearing puller and spindle wrenches (pins)

The Water Jacketed Oven is used for wide range of applications like incubating, tempering, thermal storage and for drying of inflammable material. Features Control System : Micro-PID digital with PT-100 sensor. Chamber Heater : 2.0 Kw. Temperature range : Above ambient to 90°C , ± 1°C Power supply : 415 +10% Volt AC, 3 Phase, 50 Hz MOC inner : 304 Stainless steel MOC outer : Epoxy Powder Coating Working Size : 45 W x 45 D x 45 H CMS. Customised Size of Oven can be offered.

As per ASTM D-2300, BS 5797:1986, IEC 628:1985 Gassing Tendency Apparatus measures the tendency of insulating oil / liquids to evolve or absorb gas when subjected in cells having specific geometrics, electrical stress of sufficient intensity to cause an electric discharge through a gas phase in which a gas oil interface is located. Fully Made with Stainless Steel Assembly Gassing cell and gas burette assembly made of borosilicate glass with a relative permittivity of 5 ± 0.2 at 80°C. Hollow high-voltage electrode-made of centre less-ground and polished stainless steel with stainless steel capillary tubing as a gas passage. The electrode is supported by PTFE Plug Constant temperature oil bath with a heating and circulation with digital temperature control system. Transparent safety shield-made of clear view acrylic sheet. Power supply : 120 V / 230 Volt AC, 1 Phase, 50/60 Hz
