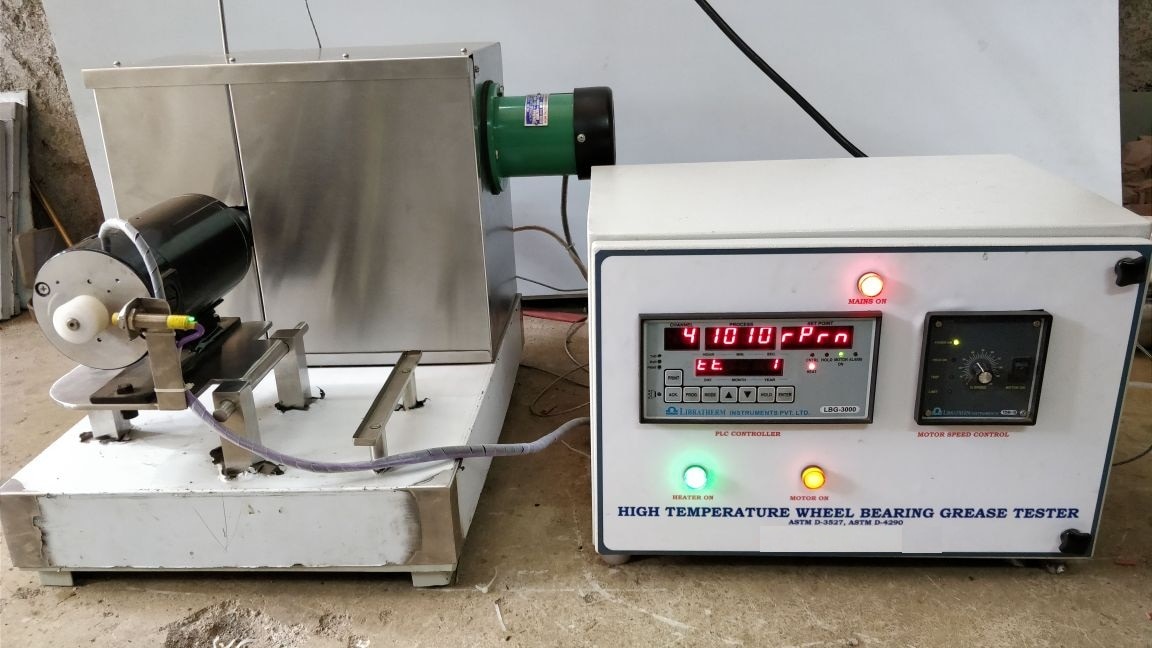

As per ASTM D3527 ,D4290, D4950. The equipment is used for testing of grease for evaluating its life performance by testing at high-temperature.
The equipment consists of a modified front wheel hub-spindle-bearings assembly housed in a constant temperature oven and coupled to a ¼ Hp variable-speed drive motor. It Control the test functions automatically and provides continuous digital display of motor torque, rpm, chamber temperature, spindle temperature, time cycle and elapsed time. Test parameters outside of ASTM specifications can be selected by the operator for in-house testing. Automatically terminates test and displays elapsed on-cycle hours when grease deterioration causes drive motor torque to increase to the calibrated end point. A built-in thirty second time delay circuit prevents erroneous test terminations due to momentary surges in motor torque at the beginning of the on-cycle. Insulated constant temperature oven is equipped with a 1200W heater and balanced 1/20 hp circulation fan for efficient heat distribution. Sliding access doors and a movable platform that swings the drive motor out of the way provide easy access to the spindle assembly. Modified steel spindle and hub assembly conforms to all critical 1971 Chevy II dimensions and is fitted with thermocouple, bearing thrust loading device and anodized aluminum grease collector. All controls and monitors are housed in a separate cabinet.
Digital controls and displays:
Timer : on/off cycle and real time
Motor rpm : 0-1725 rpm
Motor Torque: current draw
Elapsed Time: 9999.9 hr.
Maximum Temperature: 177°C
Electrical Requirements
220-240V 50Hz, Single Phase, 7A
Included Accessories
Thermocouples (2)
Thermometer holder
Bearings (1 set)
Grease Packer Assembly
Bearing Installation/Removal Tools:
Bearing installer, small and large bearing cup removers, bearing cup installer, bearing puller and spindle wrenches (pins)
Durable and efficient Tray Dryer designed for uniform drying of products such as powders, chemicals, granules, food items, pharmaceuticals, and other industrial materials under controlled temperature.
Constructed with double-walled insulation and fitted with high-quality heating elements, it ensures consistent performance with precise temperature control.
Available in multiple tray capacities, ideal for laboratory and industrial applications.
The Taber Abrasion Tester is used to determine the abrasion resistance of organic coatings produced on a plane, rigid surface.
The sample panel can be 100 mm diameter disc or 100 × 100 mm square panel with rounded corners and a 6.3 mm center hole. The weighted specimen is mounted on a turntable disc, while the abrasive wheel applies load on the test film. The abrasion resistance varies according to the applied load.
This tester is widely used in quality & process control, R&D, and material evaluation across industries such as coatings, textiles, leather, rubber, plastics, wood, glass, paper, laminates, and ceramics.
Standards: ASTM D4060, ISO 9352
Key Features:
Easy-to-use control panel with Total Count & Batch Count display
Vacuum pump system with suction hose for direct flow between hose & rotating disc
Release Wheel Hub for quick mounting without tools
Balanced calibration arms & wheel mounts with high precision weights
Technical Specifications:
Platform Speed: 60 ± 2 rpm
Auxiliary Weights: 250 gm, 500 gm & 1000 gm (two sets, one per arm)
Counterweights: 125 gm & 175 gm (two sets, one per arm)
Abrasive Wheels: CS10, CS17 (USA Taber Make – any one)
Material: Mild Steel body with durable powder coating; holding arms, counter & auxiliary weights, base disc made of stainless steel.
Package Includes:
Taber Abrasion Tester
Auxiliary weights & counterweights
Taber abrasive wheel (CS10)
Vacuum pump with suction hose
Operation manual
Calibration certificate
Spares
The EMCOR Rust Tester is designed to determine the corrosion-preventive properties of lubricating greases on ball bearings in the presence of water or salt water. The system replicates real-world mechanical and environmental conditions by rotating and resting the bearings in a water medium.
It is built to conform with IP 220 , DIN 51802 and ASTM D6138, enabling both dynamic and static corrosion testing of greases.
Key Features:
4 / 6 / 8 test setup for testing of bearings simultaneously
Bearing housing in SS 316 for high corrosion resistance
Powder-coated outer body for long life
Operates at 80 RPM with automatic rest/run cycles
Includes plummer blocks, adapter sleeves, self-aligning bearings, and V-ring seals
Microcontroller-based Run/Rest Timer.
Scope of Supply:
EMCOR Test Rig with Base Plate
Electric Motor with Gear System
SS Shaft and Support Assembly
Plummer Blocks & Bearing Housings
Self-Aligning Bearings
Adapter Sleeves & V-Ring Seals
Electronic Run/Stop Timer
User Manual
Applications:
Corrosion Testing of Grease in Bearings
R&D Labs in Lubricant Industry
Grease Quality Control Labs
Bearing Testing Facilities
Tribology Research Institutes
