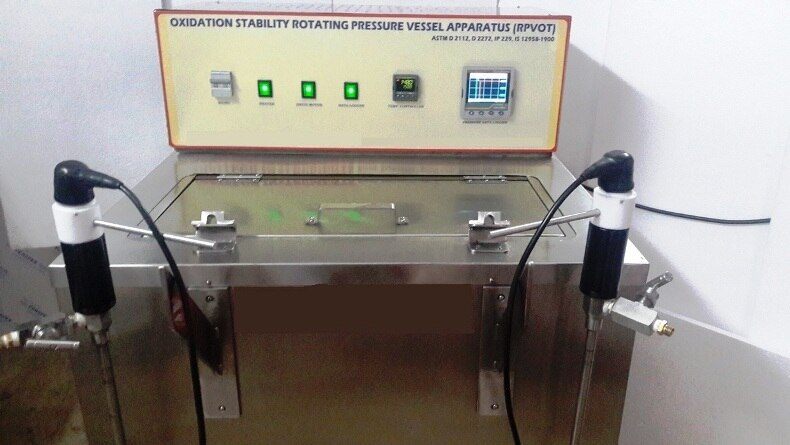

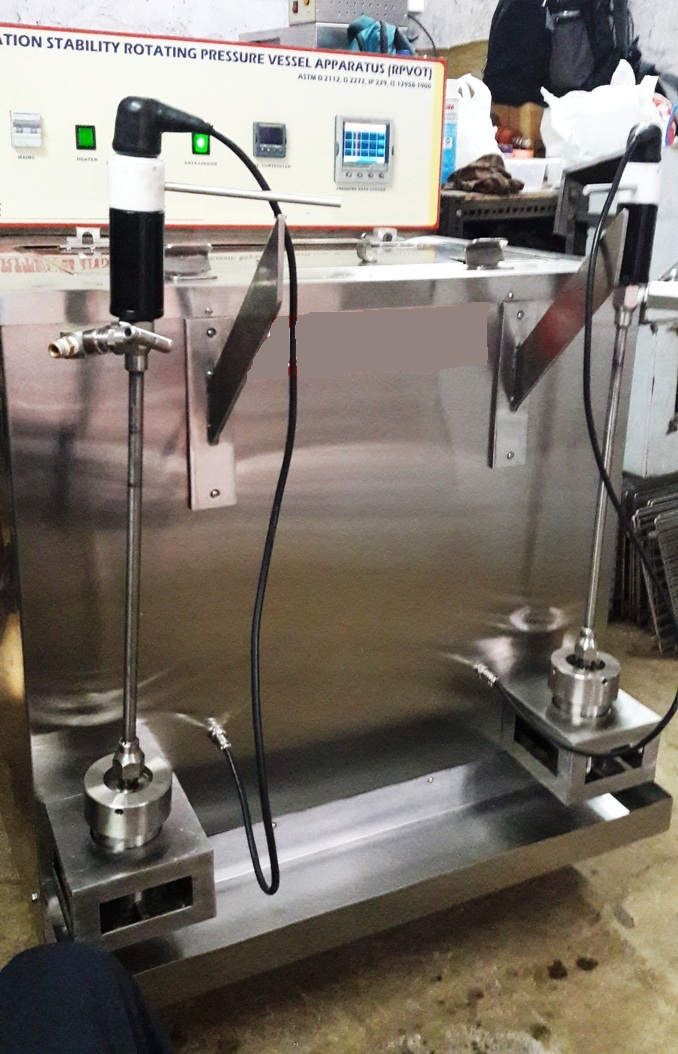

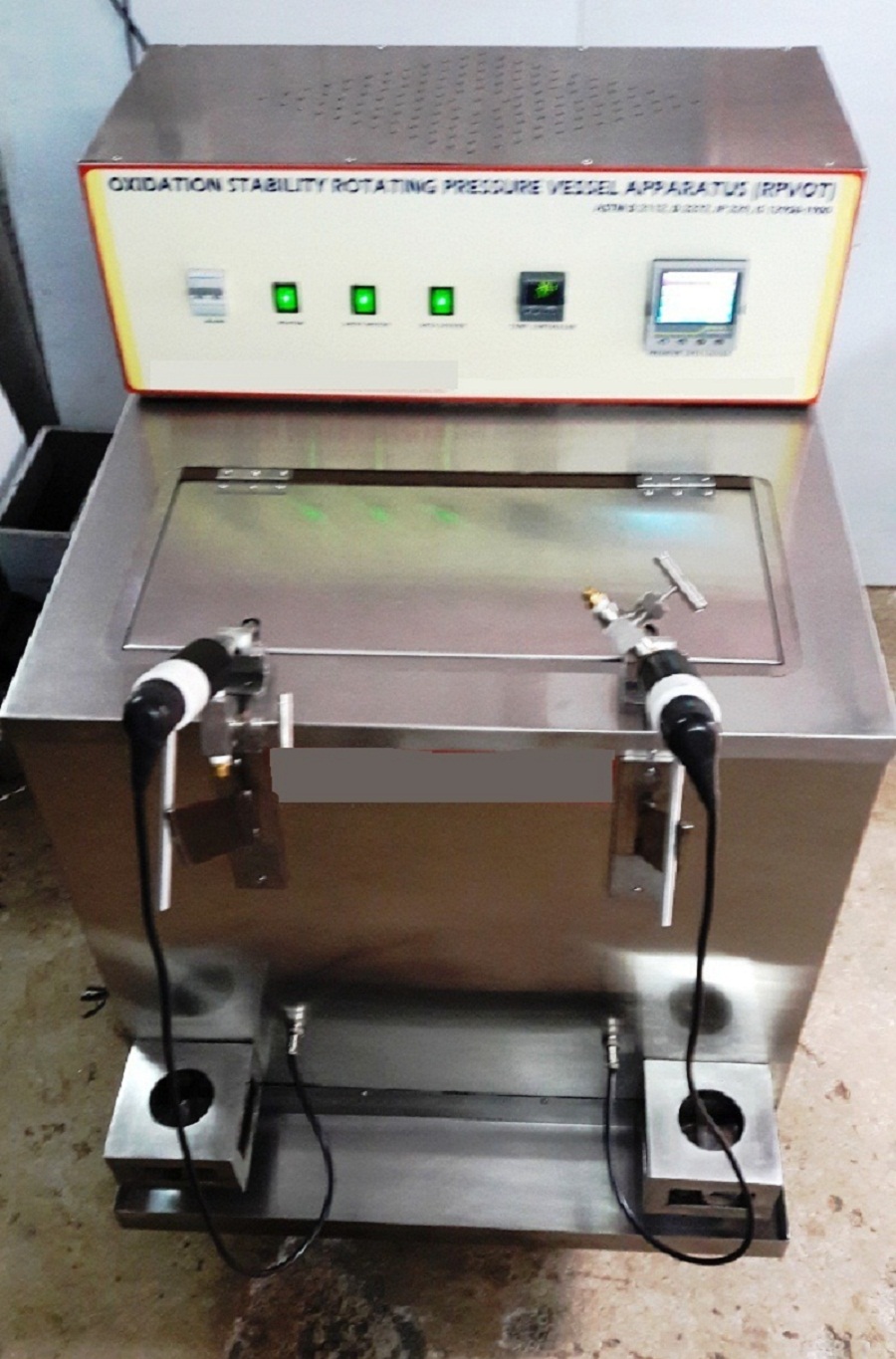

RPVOT : Rotating Pressure Vessel Oxidation Stability Test As per ASTM D 2112, D 2272, IP 229, IS:12958-1990:
The Equipment is used to evaluate the oxidation stability of new and in-service engine, turbine and insulating oils in the presence of water and a copper catalyst.
Features :
2 Nos. of Rotating pressure vessels oil bath on castors.
Digital electronic temperature controller with safety mechanical fail-safe thermostat.
Heavy duty drive motor to rotate pressure vessel at 100 rpm and is housed below the oil bath.
Rotating pressure vessel constructed of stainless steel with stem and valve to receive pressure transducer.
Pressure vessel is held at an angle of 30°
Capacity of bath is 70 litres with stainless steel body and top cover.
Catalyst wire, glass liners with PTFE-cover, an ASTM 96C thermometer, 'O' ring supplied with the unit.
Automatic Pressure digital data logger with PC interfacing software supplied on CD-ROM with pressure sensor.
Durable and efficient Tray Dryer designed for uniform drying of products such as powders, chemicals, granules, food items, pharmaceuticals, and other industrial materials under controlled temperature.
Constructed with double-walled insulation and fitted with high-quality heating elements, it ensures consistent performance with precise temperature control.
Available in multiple tray capacities, ideal for laboratory and industrial applications.
The Taber Abrasion Tester is used to determine the abrasion resistance of organic coatings produced on a plane, rigid surface.
The sample panel can be 100 mm diameter disc or 100 × 100 mm square panel with rounded corners and a 6.3 mm center hole. The weighted specimen is mounted on a turntable disc, while the abrasive wheel applies load on the test film. The abrasion resistance varies according to the applied load.
This tester is widely used in quality & process control, R&D, and material evaluation across industries such as coatings, textiles, leather, rubber, plastics, wood, glass, paper, laminates, and ceramics.
Standards: ASTM D4060, ISO 9352
Key Features:
Easy-to-use control panel with Total Count & Batch Count display
Vacuum pump system with suction hose for direct flow between hose & rotating disc
Release Wheel Hub for quick mounting without tools
Balanced calibration arms & wheel mounts with high precision weights
Technical Specifications:
Platform Speed: 60 ± 2 rpm
Auxiliary Weights: 250 gm, 500 gm & 1000 gm (two sets, one per arm)
Counterweights: 125 gm & 175 gm (two sets, one per arm)
Abrasive Wheels: CS10, CS17 (USA Taber Make – any one)
Material: Mild Steel body with durable powder coating; holding arms, counter & auxiliary weights, base disc made of stainless steel.
Package Includes:
Taber Abrasion Tester
Auxiliary weights & counterweights
Taber abrasive wheel (CS10)
Vacuum pump with suction hose
Operation manual
Calibration certificate
Spares
The EMCOR Rust Tester is designed to determine the corrosion-preventive properties of lubricating greases on ball bearings in the presence of water or salt water. The system replicates real-world mechanical and environmental conditions by rotating and resting the bearings in a water medium.
It is built to conform with IP 220 , DIN 51802 and ASTM D6138, enabling both dynamic and static corrosion testing of greases.
Key Features:
4 / 6 / 8 test setup for testing of bearings simultaneously
Bearing housing in SS 316 for high corrosion resistance
Powder-coated outer body for long life
Operates at 80 RPM with automatic rest/run cycles
Includes plummer blocks, adapter sleeves, self-aligning bearings, and V-ring seals
Microcontroller-based Run/Rest Timer.
Scope of Supply:
EMCOR Test Rig with Base Plate
Electric Motor with Gear System
SS Shaft and Support Assembly
Plummer Blocks & Bearing Housings
Self-Aligning Bearings
Adapter Sleeves & V-Ring Seals
Electronic Run/Stop Timer
User Manual
Applications:
Corrosion Testing of Grease in Bearings
R&D Labs in Lubricant Industry
Grease Quality Control Labs
Bearing Testing Facilities
Tribology Research Institutes
For Pricing and additonal details kindly write or call us.
